ASTM A276 Type 317L Rod & 317 SS Flat Bar Manufacturer in India
Grade 317 and 317L have the same chemical makeup. Yet the point of differentiation is the content of carbon and nitrogen in their alloy. While grade 317 contains a higher content of carbon as compared to grade 317L. Altering the content of a regular Stainless Steel 317 Round Bar can prove to have disastrous repercussions. However, this could be prevented by simply adding nitrogen to the alloy of grade SS 317L Square Bar. Most austenitic stainless steel alloys with lower carbon content need to be stabilized.

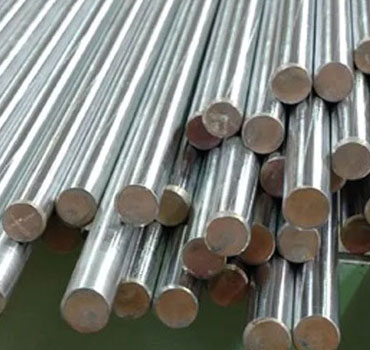

Stainless Steel 317 Round Bar

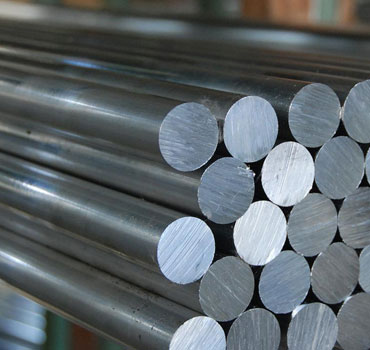

ASTM A276 Type 317L Rod
Not only are such grades weak, but they lack the strength to withstand corrosion. By adding nitrogen, the problem ceases to exist, because the SS 317L Pump Shaft And Rod see a noticeable improvement in its tensile strength, with the added benefit of having an extremely good response to welding. Though welding alloy 317 is easy, at higher temperatures, particularly in the chromium carbide precipitation range, where the temperature ranges between 800°F – 1500°F, grade 317 becomes susceptible to intergranular corrosion. But in the case of Stainless Steel 317L Hex Bar, since there is no free carbon to form carbide precipitates, the bar could be used in an as welded condition without any sensitization at the grain boundary and without becoming prone to intergranular corrosion. The higher content of molybdenum in Stainless Steel 317L Threaded Bar improves the resistance response of the alloy to stress related corrosion cracking in a much better manner as compared to austenitic 304/304L stainless steels. The UNS S31703 Bars resist getting decayed in the presence of highly corrosive solutions such as sulfuric acid, acidic chlorine as well as phosphoric acid. Because of this, the AISI 317L Bright Bar is favored for use in handling hot organic and fatty acids. Generally, chemicals like these are present in food and pharmaceutical processing applications.
An ISO certified 317L Stainless Steel Round Bar manufacturer in India
Table of Content
ASTM A276 Type 317L Hex Bar Specification Chart
Govt. of India recognised exporter of SS 317L Pump Shaft, Stainless Steel 317L Hex Bar
| Stainless Steel 317L Grade Round bar size | Diameter: 3-~800mm |
|---|---|
| ASTM A276 F317L Stainless Steel Hex Bar size | 2-100mm A/F |
| SUS 317L Stainless Steel Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| 317L Stainless Steel Square bar size | 4 to 100mm |
| 317L SS Angle bar size (in mm) | 3*20*20~12*100*100 |
| SS 317L Grade Section | 3.0 to 12.0mm thickness |
| AISI 317L Stainless Steel Channel Bar (in mm) | 80 x 40 to 150 x 75 section; 5.0 to 6.0 thickness |
| Stainless Steel Grade 317L Hollow Bar (in mm) | 32 OD x 16 ID to 250 OD x 200 ID) |
| FOOD Grade 317L Stainless Steel Billet Size | 1/2″ to 495mm Diameter |
| Grade 317L Stainless Steel Rectangles Size | 33 x 30mm to 295 x 1066mm |
| ASTM A276 F317L Stainless Steel Round Bar Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| SS 317L Round Bar Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| 317 Stainless Steel Round Bar Condition | Hardened & tempered, annealed |
| Stainless Steel Uns S31703 Bar Technique | Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Stainless Steel 317L Round Bar Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| SAE 317L Stainless Steel Bar Processing | Bar cutting to 650mm |
| Our SUS 317L Stainless Steel Round bar conforms to NACE MR0175/ISO 15156 | |
UNS S31703 Bars Surface Finish
| CD | Cold drawn | P | Polished |
| BD | Bright drawn | SRE | Slit rolled edge |
| CG | Centreless ground | HF | Hot finished |
| CF | Cold finished | HRAP | Hot rolled annealed and pickled |
| P&T | Peeled and turned | RT | Rough turned/peeled |
| ST | Smooth turned | PR | Peeled and reeled |
Common Types Of Stainless Steel 317 Round Bar
Stainless Steel 317 Rounds
ASTM A276 AISI 317l T-Bar
ASTM A276 AISI 317 Half-Round Bar
317l Stainless Steel Round Bar
317 Stainless Steel Threaded Bar
317 Stainless Steel Hex Bar
Stainless Steel 317 Hollow Bar
ASTM A276 type 317l rod
317 Stainless Steel Flat Bar
SS 317l Rectangular Bar
317 Stainless Steel Square Bar
317 Stainless Steel Rod
Stainless Steel 317L Round Bar Size Chart
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Polish | 3.00 - 75.00 | 1/8 - 3.00 | h8-h9-h10-h11 |
| Cold Drawn and Ground | 10.00 - 75.00 | 5/6 - 2.50 | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 - 150.00 | 1.50 - 6.00 | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 - 50.00 | 3/4 - 2.00 | h9-h10-h11 |
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Sizes of AISI 317L Hex Bar
We stock UNS S31703 SS Round Bar, Stainless Steel 317L Threaded Bar and ASTM A276 SS Gr 317L Rod in India.
| Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| 7 x 7 | 0.337 | 19 x 19 | 2.479 | 38 x 38 | 9.916 |
| 8 x 8 | 0.44 | 20 x 20 | 2.747 | 40 x 40 | 10.988 |
| 9 x 9 | 0.556 | 21 x 21 | 3.029 | 42 x 42 | 12.114 |
| 10 x 10 | 0.687 | 22 x 22 | 3.324 | 45 x 45 | 13.906 |
| 11 x 11 | 0.831 | 24 x 24 | 3.956 | 48 x 48 | 15.822 |
| 12 x 12 | 0.989 | 25 x 25 | 4.292 | 50 x 50 | 17.168 |
| 13 x 13 | 1.161 | 26 x 26 | 4.642 | 53 x 53 | 19.29 |
| 14 x 14 | 1.346 | 28 x 28 | 5.384 | 55 x 55 | 20.774 |
| 15 x 15 | 1.545 | 30 x 30 | 6.181 | 60 x 60 | 24.723 |
| 16 x 16 | 1.758 | 32 x 32 | 7.032 | 65 x 65 | 29.015 |
| 17 x 17 | 1.985 | 34 x 34 | 7.939 | 70 x 70 | 33.65 |
| 18 x 18 | 2.225 | 36 x 36 | 8.9 | 75 x 75 | 38.629 |
Stainless Steel 317L Square Bar Size in Mm
| Size (mm) | Weight per metre (Kg) | Size (mm) | Weight per metre (Kg) |
|---|---|---|---|
| 12 x 12 | 1.14 | 30x30 | 7.11 |
| 16 x 16 | 2.02 | 40 x 40 | 12.60 |
| 20 x 20 | 3.16 | 50 x 50 | 19.80 |
| 25 x 25 | 4.94 |
Tolerance of 317L Stainless Steel Rod
Buy directly from AISI 317L Bright Bar, Stainless Steel 317 Round Bar manufacturer for low cost.
| Finish condition | Stainless Steel 317 Round Bar Tolerance class to ISO 286-2 | ||||||
| h6 | h7 | h8 | h9 | h10 | h11 | h12 | |
| Drawn | – | – | – | R | R | R,S,H | R,S,H |
| Turned | – | – | – | R | R | R | R |
| Ground | R | R | R | R | R | R | R |
| Polished | R | R | R | R | R | R | R |
| R = Round; S = Square; H = Hexagon | |||||||
ASTM A276 F317L SS Hex Bar Composition Standard
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317L | 0.035 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 18 – 20 | 3.0-4.0 | 11.0-15.0 | 57.89 min |
317 Stainless Steel Rod Mechanical Strength Table
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Equivalent Of 317 Stainless Steel Flat Bar
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 317L | 1.4438 | S31703 | SUS 317L | – | – | – | – |
