Monel 400 Sheet and ASTM B127 Alloy N04400 Plate manufacturer in India
Usually available in an annealed condition, Monel may also be supplied as Alloy 400AR. The term AR is in reference to the ASTM B127 Monel 400 Sheet being supplied in an as-rolled condition. When the term AR has been suffixed with the grade, it is to be understood that the Monel 400 Plate has to be produced in the as-rolled condition in order to satisfy the application’s need for higher tensile strength.
Monel 400 Plate

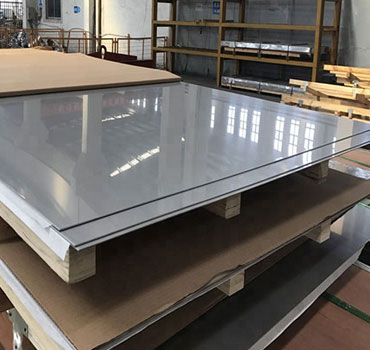

ASTM B127 Monel 400 Sheet
A highly ductile alloy, the UNS N04400 is preferred by buyers to be used in environments where the conditions range from mildly oxidizing through neutral. The UNS N04400 Monel 400 Foil is also successfully applied in moderately reducing conditions. Yet, the alloy was designed to cater to the requirements of the marine and shipping industry. Along with resistance to seawater, the Grade Monel 400 Clad Plate is also resistant to nonoxidizing chloride solutions, making it favorable to marine and high sea applications. Because the alloy is resistant to chemicals such as fluorine, hydrogen fluoride, hydrofluoric acid, hydrochloric acid, sulfuric acid as well as resistant to neutral and alkaline salt solutions, the UNS N04400 Plate is a suitable alloy for the Chemical Processing industry. The corrosion resistance properties of Monel 400 also includes caustic alkalies, in addition to non-oxidizing halides and dry chlorine service.
Stockist of Monel 400 Grade Cold Rolled Plate, UNS N04400 Sheet in India
Table of Content
ASTM B127 Monel 400 Plate Specification
Buy Monel N04400 Plate and DIN 2.4360 Alloy 400 Sheet at the lowest price
| Grade | MONEL 400 - ALLOY 400 (66 Ni/34 Cu) - UNS N04400 |
|---|---|
| Type | Foils, Coils, Plate, Strip, Sheet, Flats, Clad Plate, Rolling Plate, Flat Shim, Plain Sheet, Rolling Sheet Rolls, Blank (Circle), ,Flat Sheet, Shim Sheet, soft annealed, descaled, sheared, annealed, Checker Plate, tread plate |
| Plate Specification | ASTM B127 UNS N04400, ASME SB127, MSRR, BS, AMS 4544 sheet |
| ASTM B127 Alloy 400 Plate surface | BA, No.3, No.4, No.6, No.1, No. 2D, No. 2B, BA NO(8), No.7, 2B, 2D, Hot rolled plate (HR), Cold rolled sheet (CR), No.1 finish hot rolled ASTM B127 Alloy 400 Plate, SATIN (Met with Plastic Coated), 2B, 1D, No.4, 8K, BA, hairline, brush, satin, mirror etc. |
| ASTM B127 Alloy 400 Plate Length | 0-12mm or as required |
| Alloy Monel 400 Plate Thickness | 0.3 to 1200 mm or as required |
| 400 Monel Plate Width | 0-2500mm or as required |
| UNS N04400 Monel 400 Plate Process | Hot/ Cold Rolled |
Monel 400 Sheet price List
| Price of Monel 400 Sheet | ASTM B127 Monel 400 Plate Price in INR | UNS N04400 Plate Price in USD |
|---|---|---|
| Nickel Alloy Sheet Monel 400(1 Pcs)(Astm-b-127)(.030/.034x48x120)(Cold Rolled Bright Annealed)(Mm88r1br-sn00m)(60 Lbs) | INR 62,761 | USD 860.20 |
| Nickel Alloy Sheet Monel 400(1 Pcs)(Astm-b-127)(.060/.066x48x120)(Cold Rolled Annealed) | INR 107,766 | USD 1477.03 |
| Monel 400 Sheet (1 Pcs)(Astm-b-127)(.024/.027x36x120)(Cold Rolled Bright) | INR 88,858 | USD 1217.88 |
| Nickel Alloy Sheet Monel 400(1 Pcs)(Astm-b-127)(.024/.027x36x 120)(Cold Rolled, Bright Annealed)(Mm70r8br-sf78m)(36lbs) | INR 99,517 | USD 1363.97 |
Various Types Of UNS N04400 Plate
Alloy 400 Nickel Clad Plate
Monel 400 Superalloy Mesh Plate
UNS N04400 Monel 400 Chequered Plate
Alloy Monel 400 Shim Stock
ASTM B127 Alloy 400 Sheet
UNS N04400 Monel 400 Foil
Alloy Monel 400 Coil
Monel 400 Din 2.4360 Cold Rolled Sheet
Monel 400 Nickel Alloy Cold Rolled Plate
Alloy Monel 400 Polished Plate
ASTM B127 Alloy 400 Flat Sheet
ASTM B127 Alloy 400 Precision Strip
Monel 400 Sheet Size Chart
Check sizes and dimensions of UNS N04400 Monel 400 Strip, Grade Alloy 400 Clad Plate
Size (in inches) |
Size (in mm) |
|---|---|
.125" |
3.18mm |
.134" |
3.40mm |
.156" |
3.96mm |
.187" |
4.75mm |
.250" |
6.35mm |
.312" |
7.92mm |
.375" |
9.53mm |
.500" |
12.7mm |
.600" |
15.9mm |
.750" |
19.1mm |
.875" |
22.2mm |
1" |
25.4mm |
1.125" |
28.6mm |
1.250" |
31.8mm |
1.500" |
38.1mm |
1.750" |
44.5mm |
2" |
50.8mm |
2.500" |
63.5mm |
3" |
76.2mm |
Dimension standards of Monel 400 Grade Cold Rolled Plate
| Plate Surface finish | Gauge (in) | Width (max in) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed Plate | 10–24 | 72* |
| 2D – Cold rolled, heat treated, pickled plate | 12–24 | 60 |
| BA Mexinox only | 18–28 | 48 |
| Polished plate (not brushed) | 11–24 | 60 |
| Temper rolled plate Mexinox only | 13–29 | 48 |
| Plate Surface finish | Thickness (mm) | Width (max mm) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed plate | 0.25–8.0 | 2032 |
| 2D – Cold rolled, heat treated, pickled plate | 0.4–6.35 | 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled plate | 0.4–8.0 | 2032 |
| 2R – Cold rolled, bright annealed plate | 0.25–3.5 | 1524 |
| 2H – Work hardened plate | 0.4–6.35 | 1524 |
| Polished, brushed plate | 0.5–4.0 | 1524 |
ASTM B127 Monel 400 Sheet Weight Chart
Ready stock of UNS N04400 Monel Foil & ASTM B127 Alloy 400 Plate
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Monel 400 Clad Plate Chemical Properties
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
|---|---|---|---|---|---|---|---|
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
Mechanical Behaviour of Monel 400 ASTM B127 Hot Rolled Plate
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
Monel 400 Alloy Polished Plate Equivalent Material
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
